New York State's Changing Climate Figure Gallery

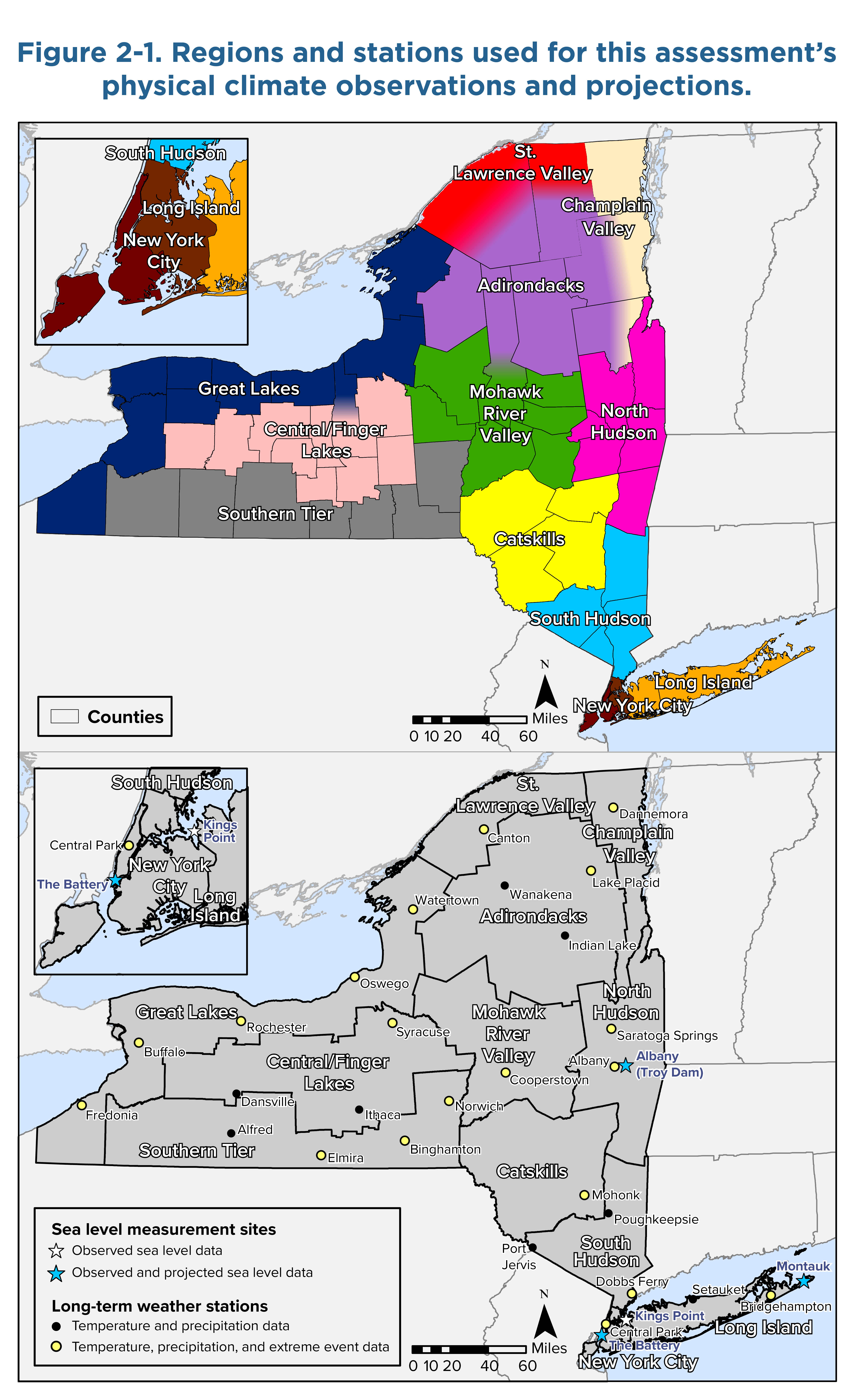

Two maps of New York State, each with an inset map of New York City. The top map is colored and labeled by assessment region and overlaid with county divisions. The bottom map shows the locations of 19 stations with temperature, precipitation, and extreme event data, eight stations with temperature and precipitation data, three stations with observed and projected sea level data, and one station with observed sea level data. The bottom map is overlaid with assessment region boundaries and labels.

Line chart with two lines and six sets of points. The thin line shows the observed annual average temperature in degrees Fahrenheit from 1981 to 2022, and the horizontal line shows the baseline average temperature for the period 1981 to 2010. Points show projected 30-year average temperatures under a very high emissions scenario (SSP5-8.5) and an intermediate emissions scenario (SSP2-4.5), for the 2030s, 2040s, 2050s, 2060s, 2070s, and 2080s.

A line graph of mean annual temperature in degrees Fahrenheit in New York State from 1901 to 2022, and a line showing the linear trend.

Four maps of New York State with assessment regions colored by temperature in degrees Fahrenheit. From left to right, the four maps show the baseline temperature for 1981 to 2010, and the projected temperatures for the 2030s, 2050s, and 2080s.

Four line graphs with seasonal average temperatures in degrees Fahrenheit for winter, spring, summer, and fall in New York State from 1901 to 2022. Each plot also shows linear trend lines for each season.

Three panels with four box plots each showing the range of projected average temperature in degrees Fahrenheit for winter, spring, summer, and fall. The top panel shows each season for the New York City region, the middle panel shows each season for the Great Lakes region, and the bottom panel shows each season for Catskills regions. Each seasonal box plot contains three boxes that represent projected average temperature for the 2030s, 2050s, and 2080s, with a horizontal line showing baseline seasonal average temperature from1981 to 2010 for the corresponding season. Each box showing projections extends from the 25th percentile to the 75th percentile.

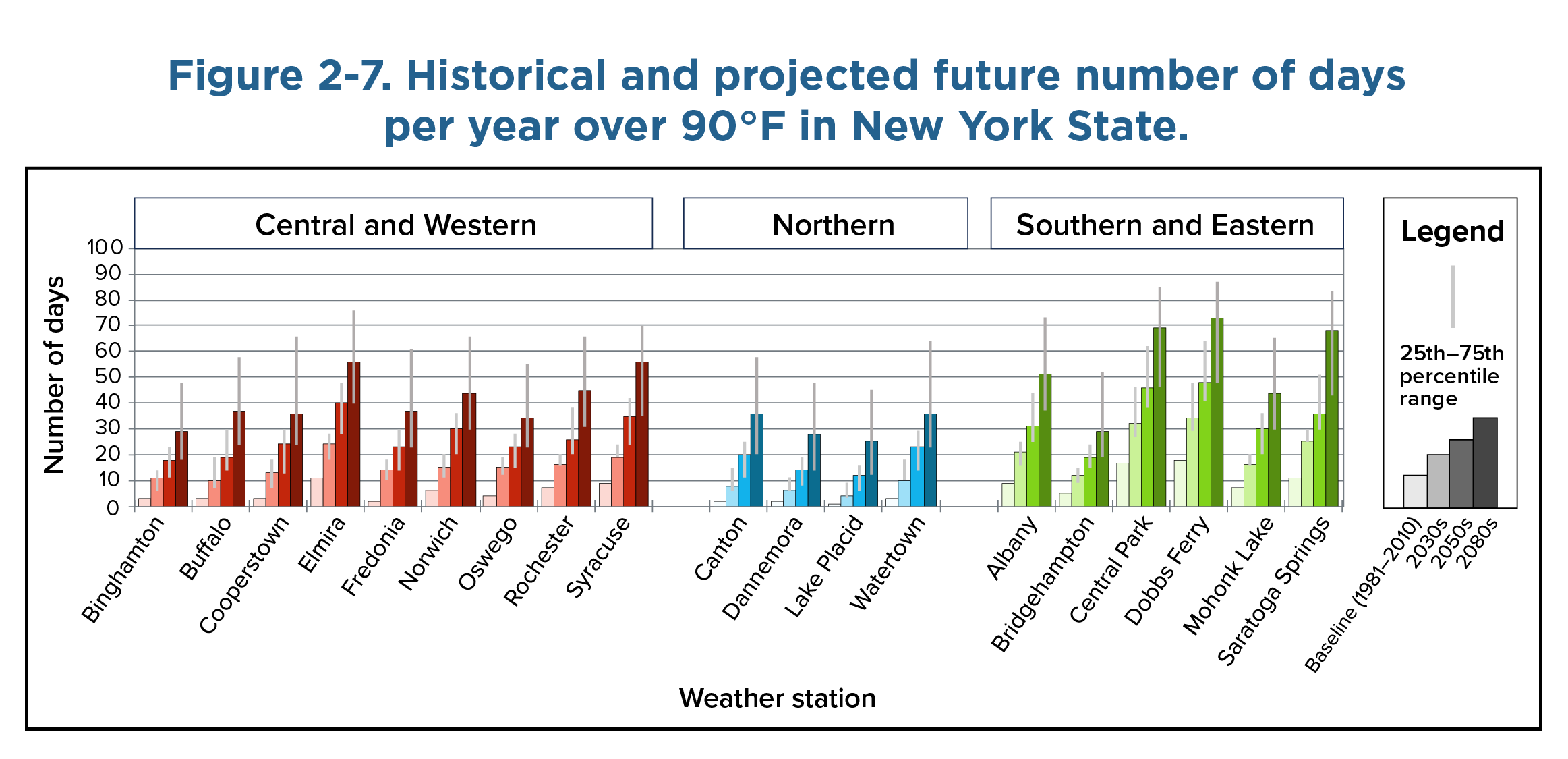

A bar chart with 19 groups of four bars showing historical and projected future annual number of days per year over 90 degrees Fahrenheit in New York State. Each group of bars represents one station and bars show the baseline number of days and the projected number of days by the 2030s, 2050s, and 2080s. Each projected bar also includes an error bar demonstrating the 25th to 75th percentile of projections.

A bar chart with 19 groups of four bars showing historical and projected future annual number of heat waves in New York State. Each group of bars represents one station and bars show the baseline number of heatwaves and the projected number of heatwaves by the 2030s, 2050s, and 2080s. Each projected bar also includes an error bar demonstrating the 25th to 75th percentile of projections.

A grid with 19 rows and seven columns showing projected annual maximum heat index in parts of New York State during the 21st century. Each row represents a weather station. The leftmost column shows the 1981 to 2010 baseline value, followed by the 25th percentile and 75th percentile projected values for the 2030s, 2050s, and 2080s. Colors are used to show heat index danger ranging from caution to extreme danger.

Two bar charts, each with 19 groups of four bars, showing historical and projected number of days per year below 32 degrees Fahrenheit (top panel) and days per year below 0 degrees Fahrenheit (bottom panel) in New York State. Each group of bars represents one station and bars show the baseline number of days and the projected number of days by the 2030s, 2050s, and 2080s. Each projected bar also includes an error bar demonstrating the 25th to 75th percentile of projections.

A line graph with two lines showing the number of heating and cooling degree days in New York State from 1895 to 2022. A linear trend line is also included for each data set. The top line shows the number of cooling degree days, defined as the number days warmer than 65 degrees Fahrenheit, along with its linear trend line. The bottom line shows the number of warming degree days, defined as the number of days warmer than 65 degrees Fahrenheit, along with its linear trend line.

A line graph with two lines showing the number of heating and cooling degree days in New York State from 1895 to 2022. A linear trend line is also included for each data set. The top line shows the number of cooling degree days, defined as the number days warmer than 65 degrees Fahrenheit, along with its linear trend line. The bottom line shows the number of warming degree days, defined as the number of days warmer than 65 degrees Fahrenheit, along with its linear trend line.

A line graph of total annual precipitation in New York State from 1901 to 2022. Linear trend over time is also shown by a second line.

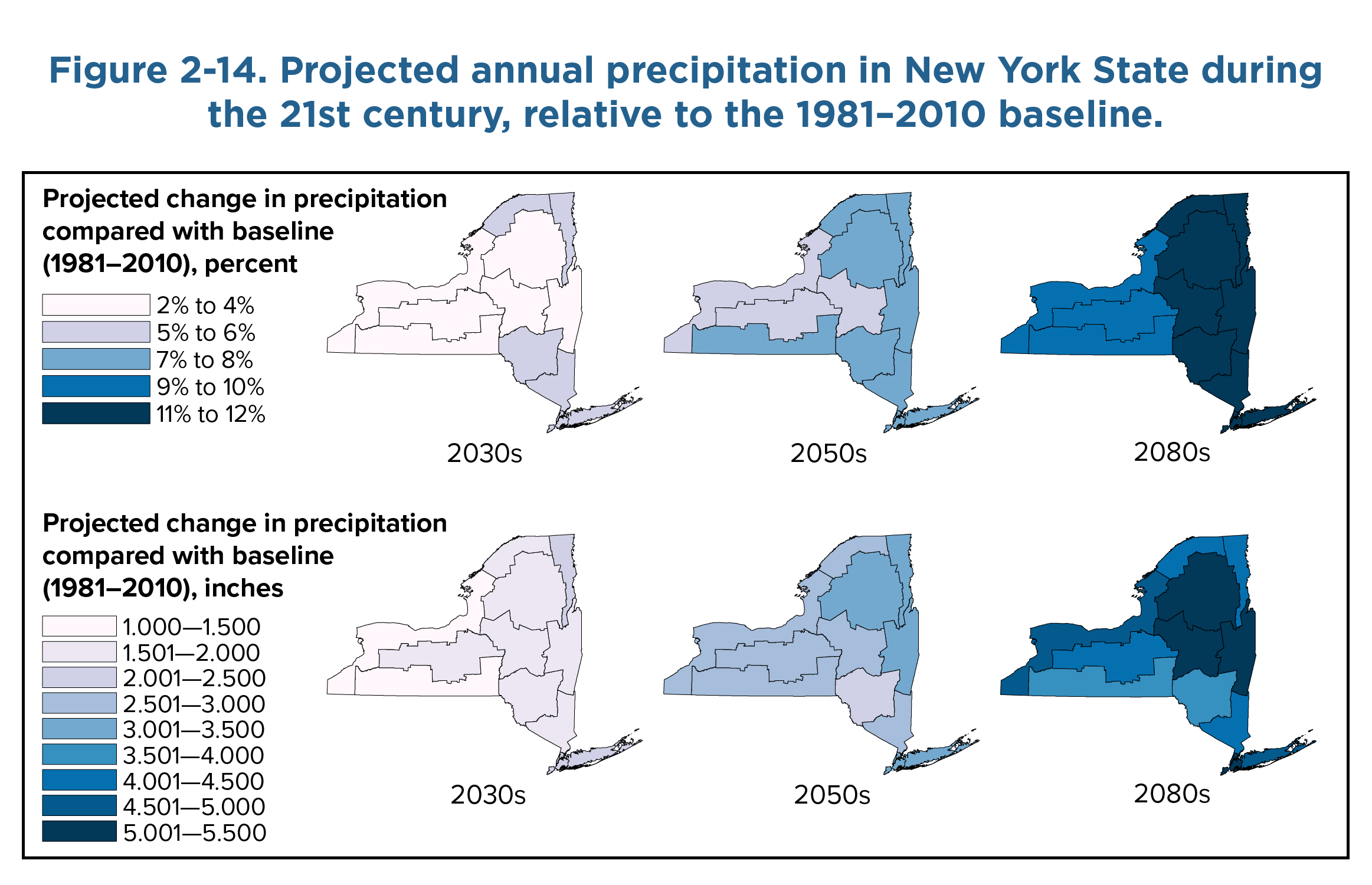

Two panels with three maps each of New York State showing the projected change in annual precipitation by assessment region compared with the 1981–2010 baseline. In both groups of maps, the first map shows the projected change by the 2030s, the second map shows the projected change by the 2050s, and the third map shows the projected change by the 2080s. The top panel of three maps shows projected change as a percent change from baseline. The bottom panel of three maps shows the projected change in precipitation in inches.

A panel of four line graphs showing the total precipitation in inches for each season in New York State from 1901 to 2022. Each seasonal graph also has a linear trend line.

Three panels with four box plots each showing the range of projected changes in precipitation in each season. The top panel shows each season for New York City region, the middle panel shows each season for the Great Lakes region, and the bottom panel shows each season for Catskills regions. In each seasonal box plot for each of the three regions there are three boxes that represent projected percent change in precipitation relative to the 2981 to 2010 baseline for the 2030s, 2050s, and 2080s. Each box showing projections extends from the 25th percentile to the 75th percentile.

A bar chart with 19 groups of four shaded bars showing historical and projected number of days per year with more than 2 inches of precipitation in New York State. Each group of shaded bars represents one weather station, and the four shaded bars represent the 1981–2010 baseline and the projected number of days per year for the 2030s, 2050s, and 2080s. Each projected bar also includes an error bar demonstrating the 25th to 75th percentile of projections.

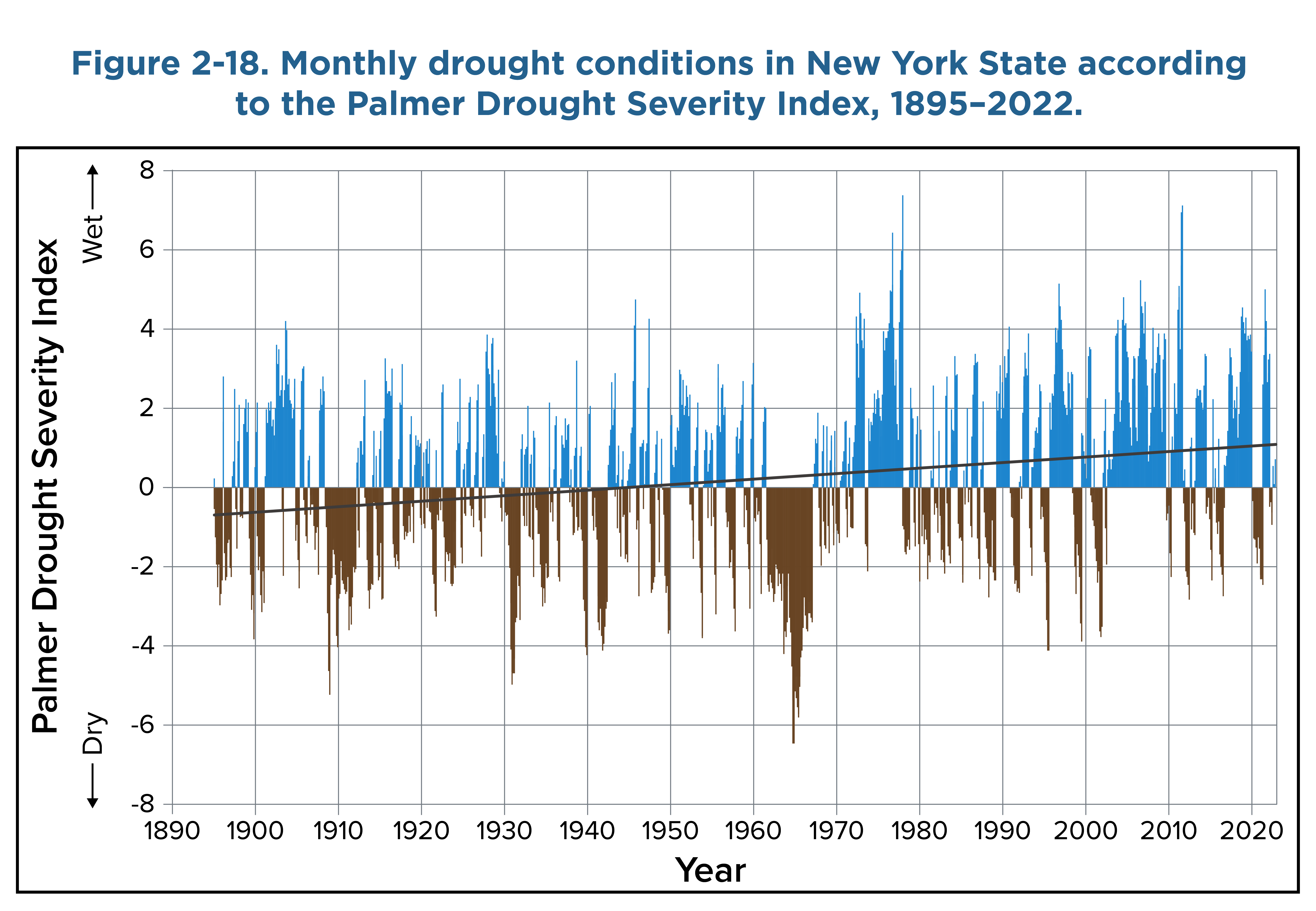

A column chart showing monthly Palmer Drought Severity Index values in New York State from 1895 to 2022. Wetter months are shown above the zero line and dryer months are shown below the zero line. A linear trend line is also included on the figure.

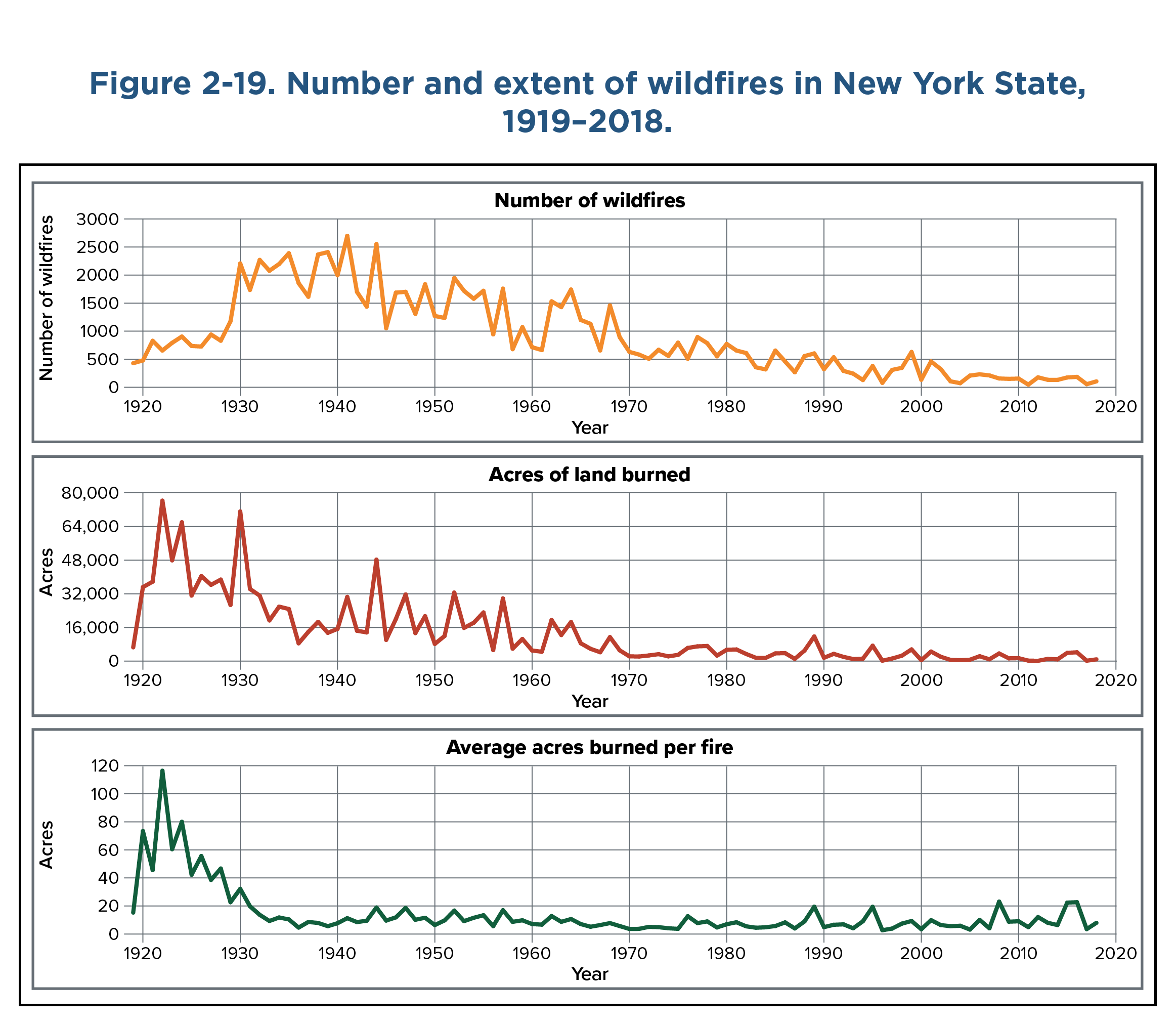

Three line graphs, each appearing in their own panel, showing the number of wildfires, the acres of land burned, and the average acres burned per fire in New York State from 1919 to 2018.

A line graph showing the number of marine heat wave days in the New York Bight from 1982 to 2020. The graph also has a linear trend line and a smoothed curve representing the nonlinear generalized additive model, which has colored segments showing statistically significant increases and decreases in the nonlinear model.

Two line graphs showing relative sea level at two long-term measurement sites between 1856 and 2002. The Battery is shown in the top panel and Montauk is shown in the bottom panel. In each panel, a line shows the monthly mean sea level in inches, and a linear trend line.

A map of the area around Jamaica Bay, New York City, colored and shaded to show the potential progression of tidal flooding during the 21st century. Colors represent the present day mean monthly high water level, and the potential progression of sea level rise for the 90th percentile model-based scenarios of four decades: 2020s, 2050s, 2080s, 2100. Cross hatching shows potential progression of tidal flooding for the high impact but low probability Antarctic rapid ice melt (ARIM) scenarios of sea level rise, for the 2080s and 2100.

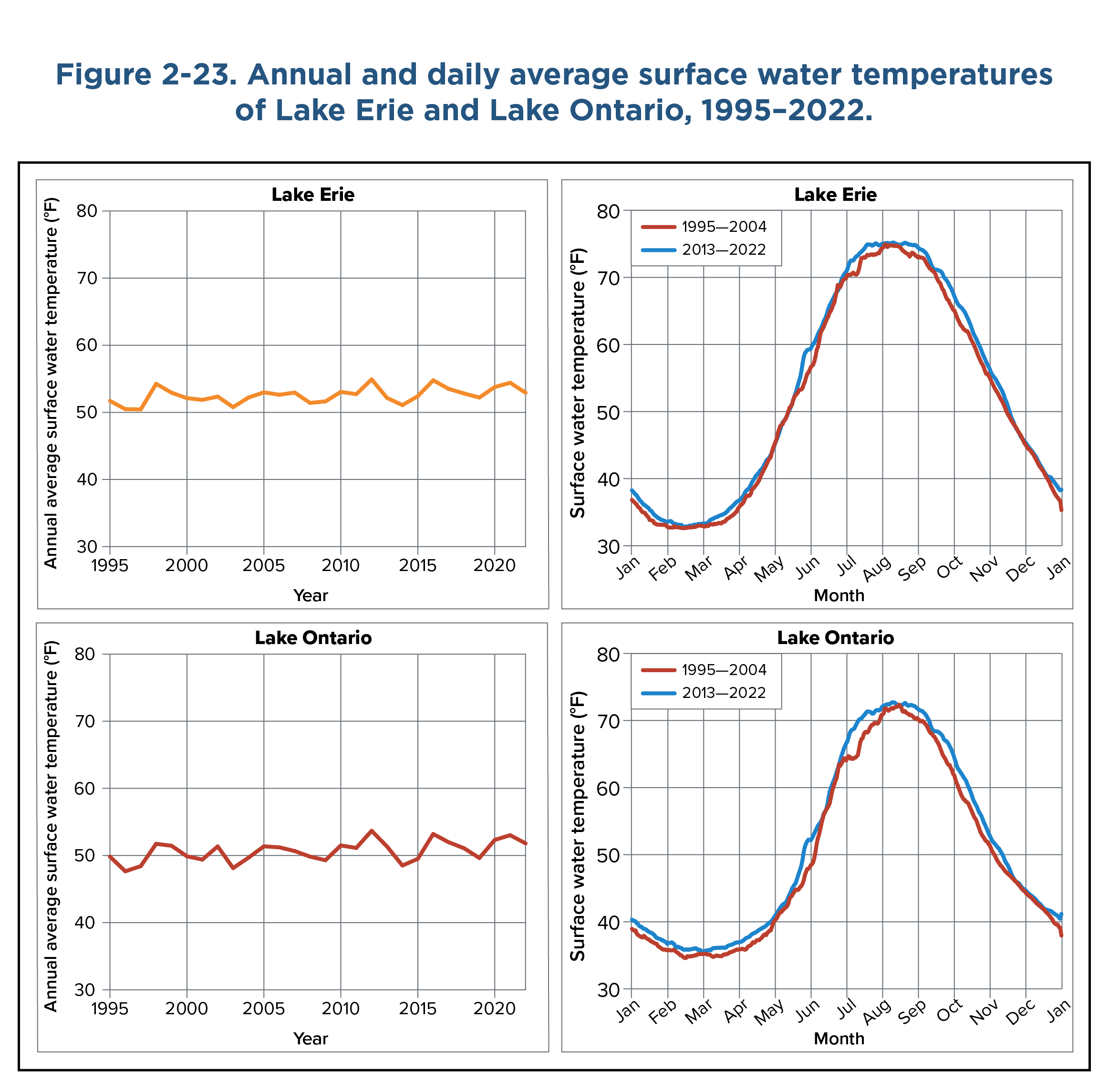

Four panels of line graphs showing the annual and daily average surface water temperatures of Lake Erie and Lake Ontario from 1995 to 2022. The figures on the left each have a line showing annual average surface water temperature in degrees Fahrenheit from 1995 to 2022, along with linear trendlines. The figures on the right each have two curves showing monthly surface water temperature in degrees Fahrenheit from January to December. One curve represents the monthly surface water temperature from 1995 to 2004 (bottom curve) and the other the monthly surface water temperature from 2013 to 2022 (top curve).

A map of New York State, with counties colored to indicate their respective reported financial loss in dollars per capita from 1996 to 2017 as a result of flooding events. Assessment region boundaries and names are overlaid. An inset map shows this data for the New York City assessment region.

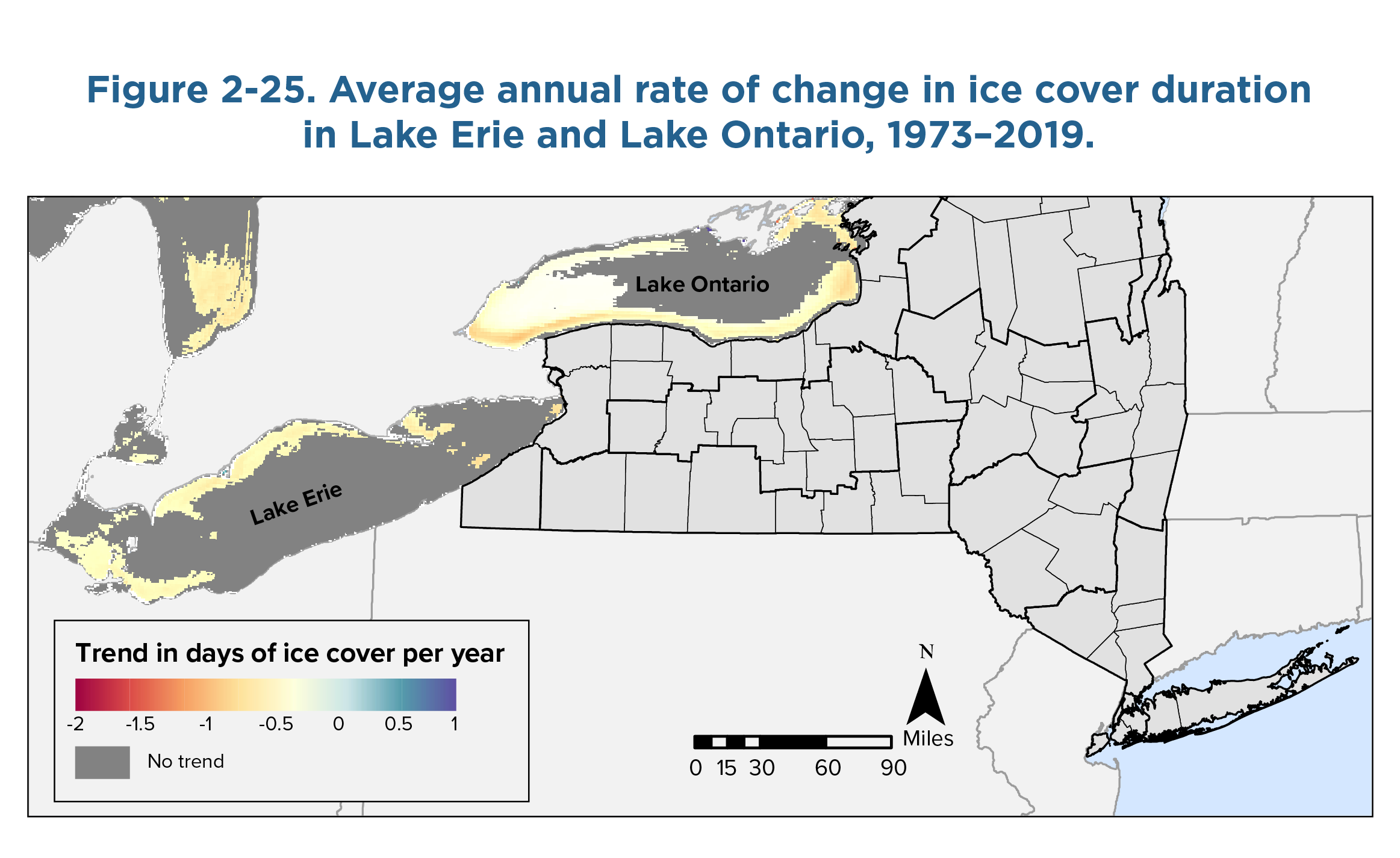

A map of Lake Erie and Lake Ontario shaded to show the trend in days of ice cover per year. All areas show either a decrease or no trend. A portion of New York state with county and assessment region divisions is also shown.

Two line graphs showing water levels in Lake Erie (top) and Lake Ontario (bottom), from 1860 to 2020. In each panel, a thin line shows the annual average water level anomaly in feet, and the shaded band shows the range of monthly average water levels.
